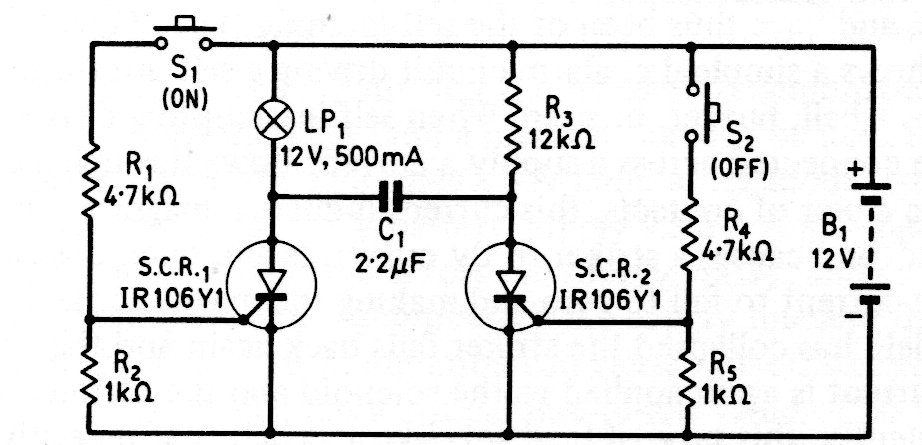

This configuration that we explored in several practical circuits on our website was obtained in a documentation from the 70s. The circuit shows how we can turn a circuit with SCRs on and off using two push buttons that can also be sensors or even reed relays in an application such as shield.
