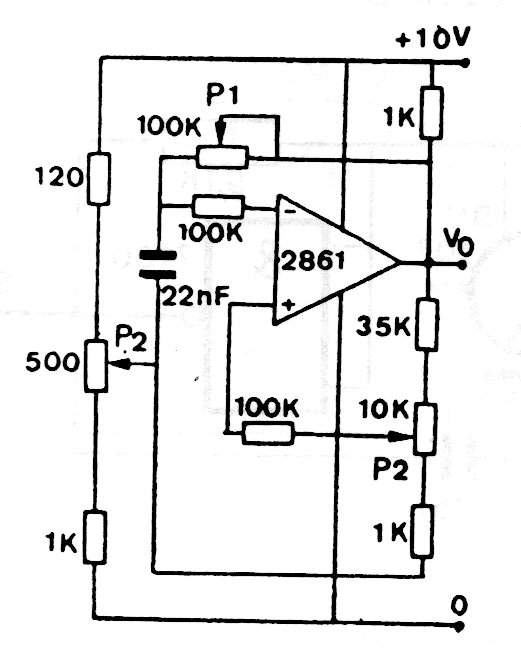

This circuit uses an operational amplifier that is uncommon today, but it can be implemented with equivalents, including the 741. The circuit is from an old documentation and does not need a symmetrical power supply.
Adjustable Pulse Generator (CB19828E)
- Details
- Written by: Newton C. Braga
