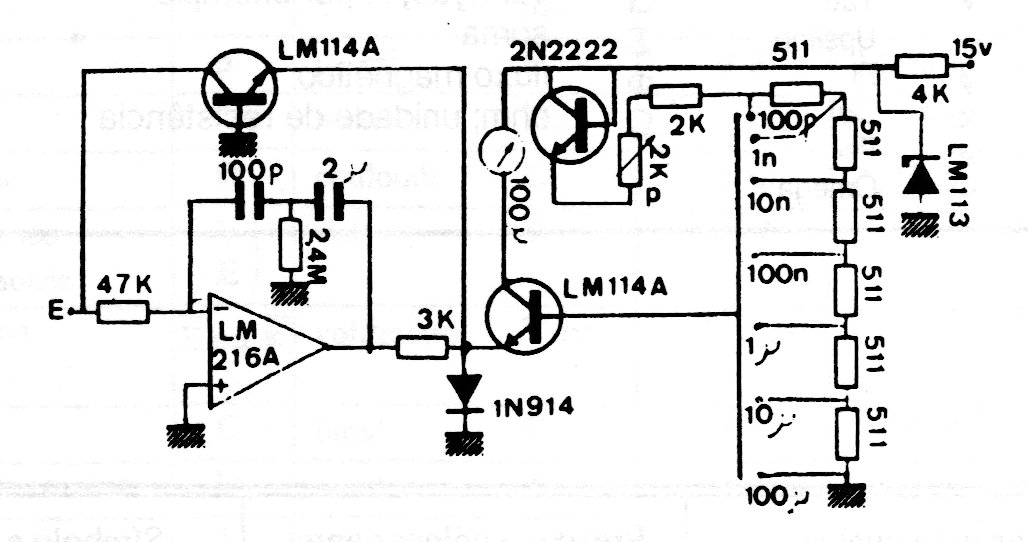

This sensitive microammeter was found in documentation from the 1980s. The accuracy of the circuit depends on the accuracy of the resistors used in the shunt circuit. The 100uA instrument can be replaced by the lower current range of a standard multimeter. Transistors support equivalents.
