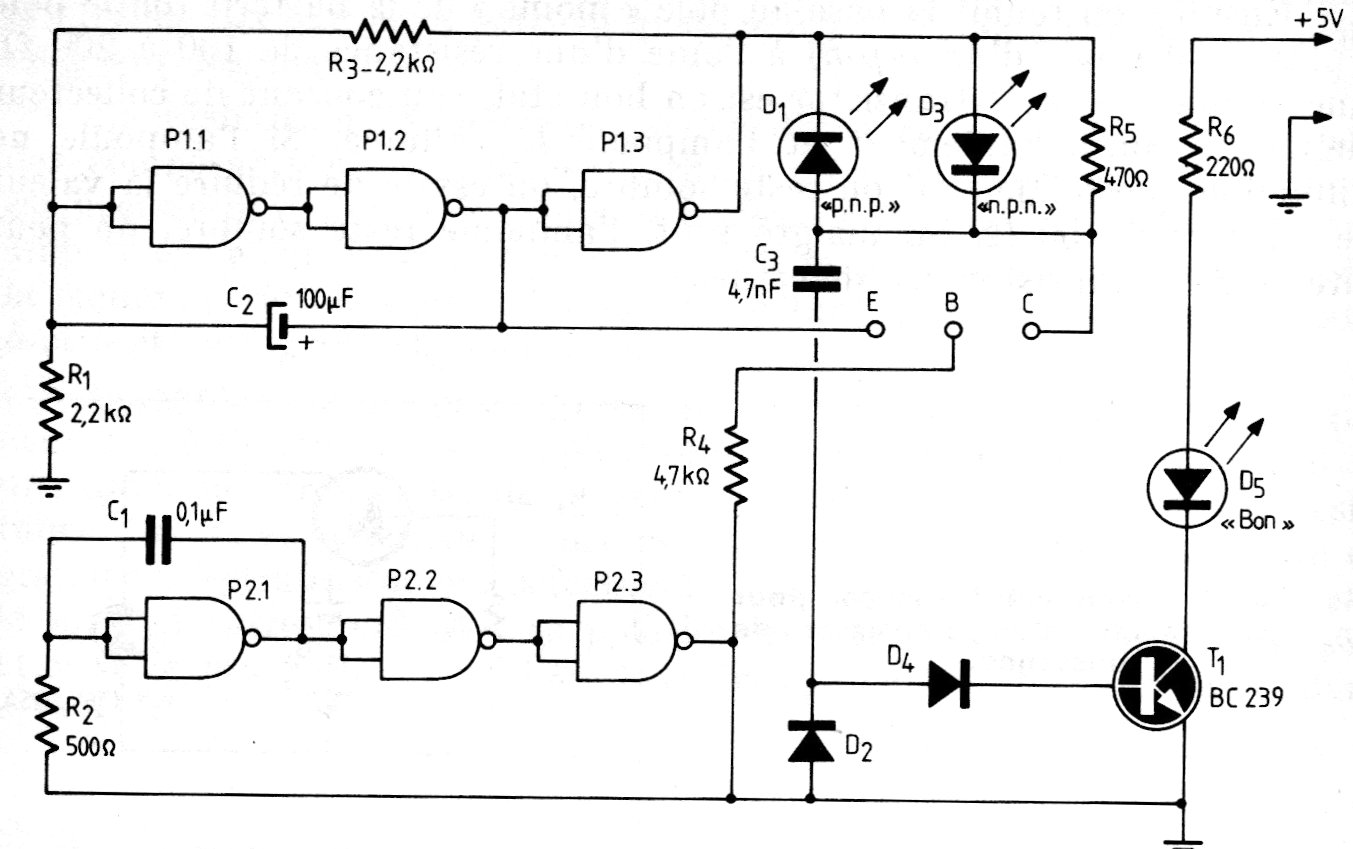

This circuit, found in similar versions in other articles in this section, dynamically tests transistors, checking whether they switch and furthermore indicates their type. The circuit uses indicator LEDs and can operate with voltages from 5 to 12 V without problems.
