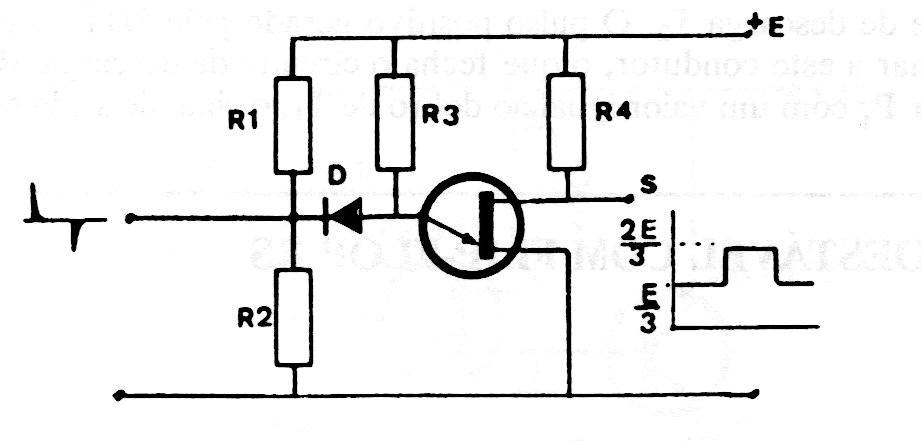

This is an interesting configuration obtained in an old circuit manual. The unijunction can be 2N2646 and the supply is made with voltages from 6 to 15 V. The diode is general-purpose type and the resistors determine the trigger points of the circuit.
