Operational Input Bias (CB19705E)

Details
Written by: Newton C. Braga

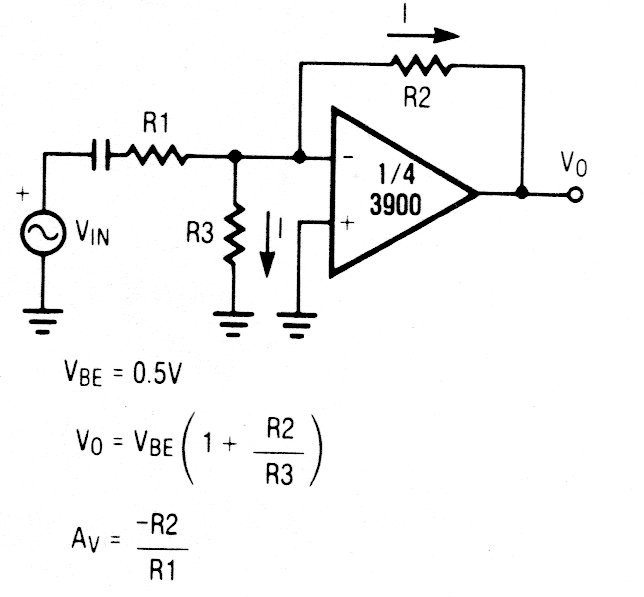

Taking an example of a Raytheon operative as uncommon today, the circuit applies to other operational amplifiers. The formulas are given next to the diagram.




| Clique na imagem para ampliar |
