Band Pass Filter I (CB19684E)

Details
Written by: Newton C. Braga

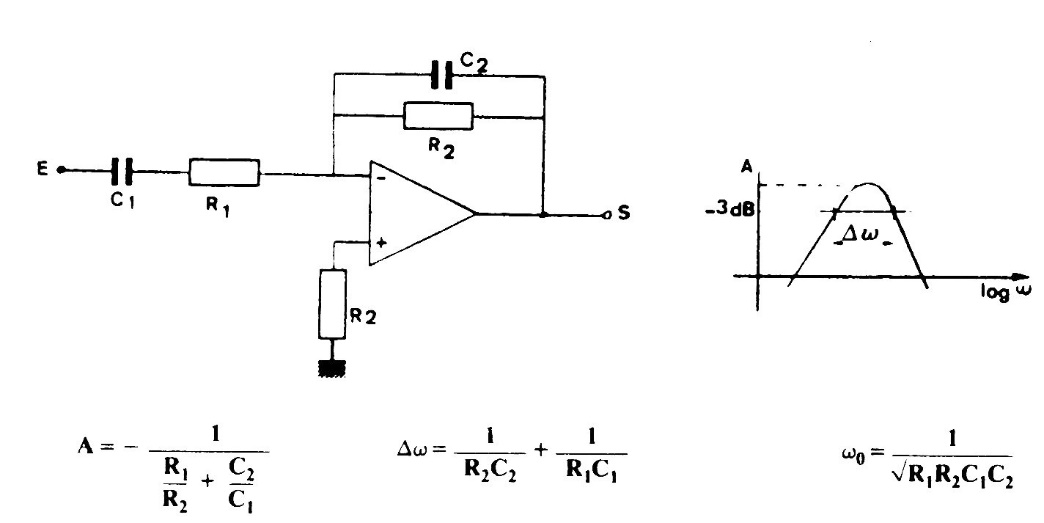

This filter, found in an old manual, has characteristics of reduced overvoltage given by the graph next to the diagram. Formulas for component calculations are given next to the diagram.






| Clique na imagem para ampliar |
