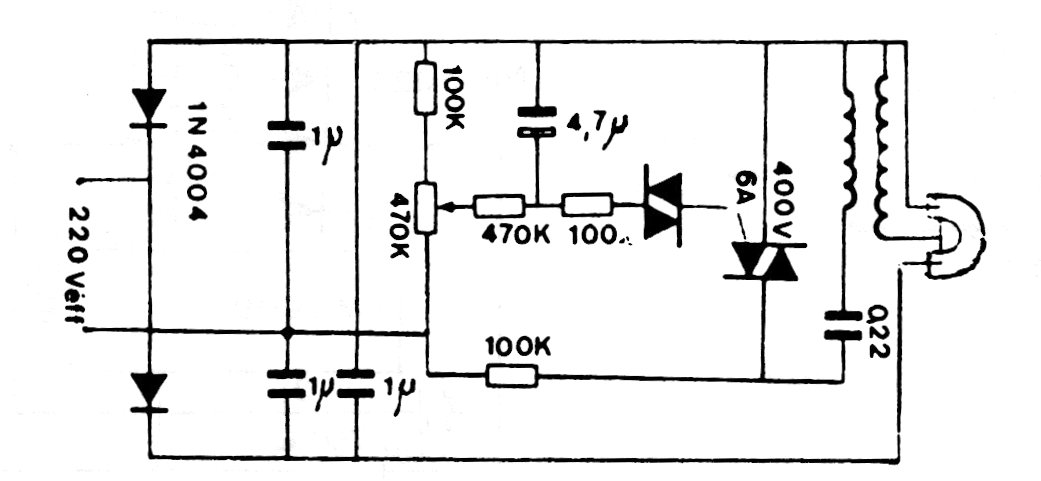

This xenon lamp circuit is from old documentation. The trip transformer has a 1: 1 turn ratio and depends on the type of lamp used. The circuit has its frequency adjusted in the potentiometer according to the value of the capacitor. The capacitors of the source must be for 600 V or more.
