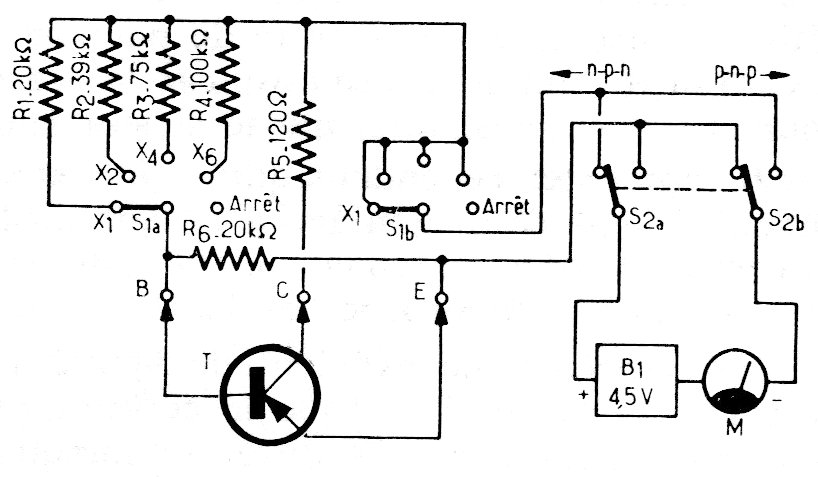

We found this tester or test of bipolar transistors in a European publication in 1981. The circuit is still current, being able to use the lower current range of the multimeter instead of the used indicator microammeter.
