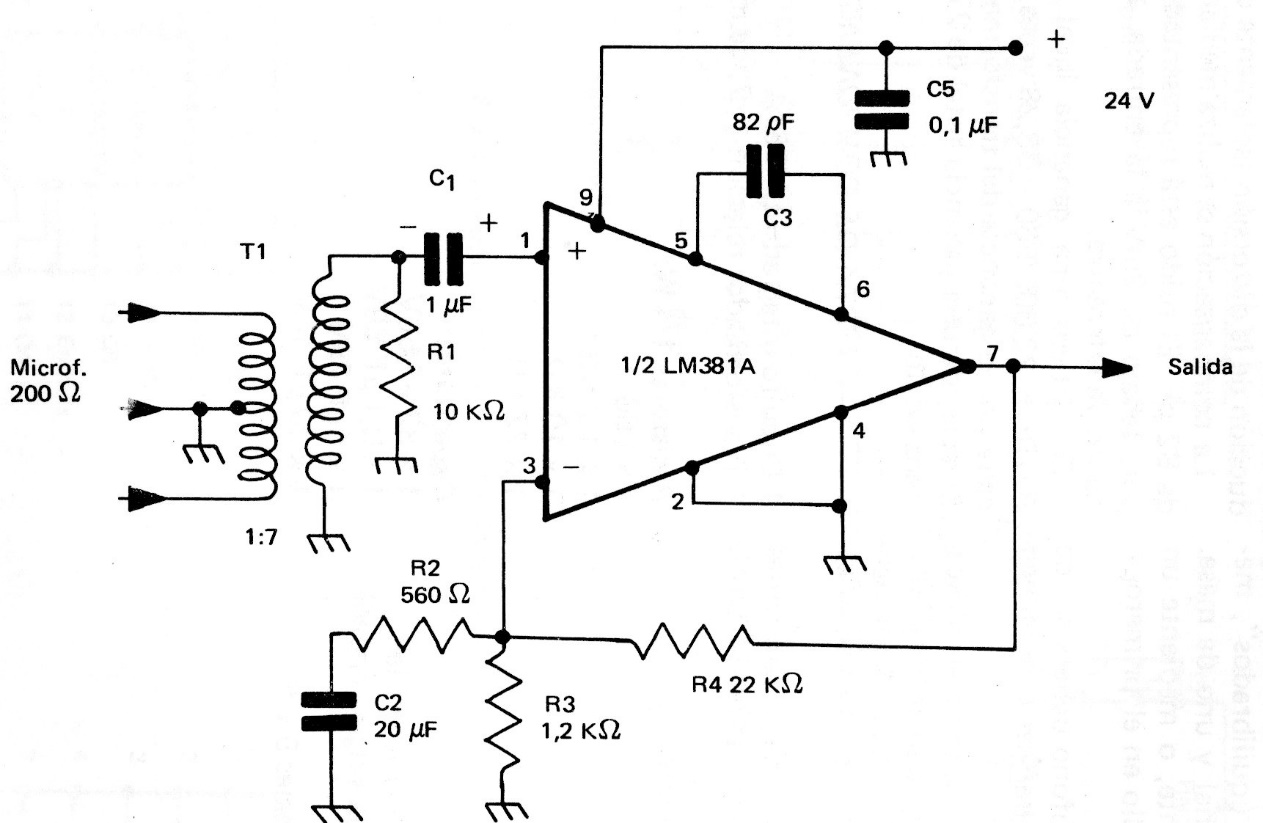

The integrated circuit used in this configuration found in documentation from the 1980s is not common today. The supply is made with a relatively high voltage and the circuit is intended for balanced low impedance microphones.
