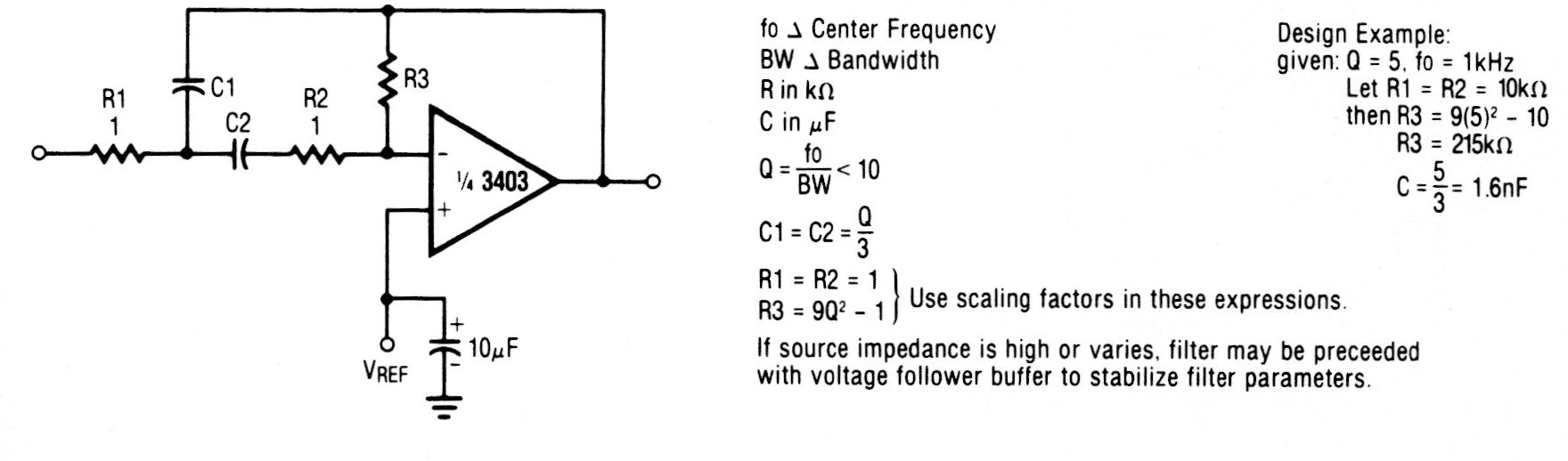

This circuit is based on documentation from the operational's own manufacturer, from the 80's. The same circuit can be implemented with modern operational, based on data provided in the diagram itself. The power supply must be symmetrical.
