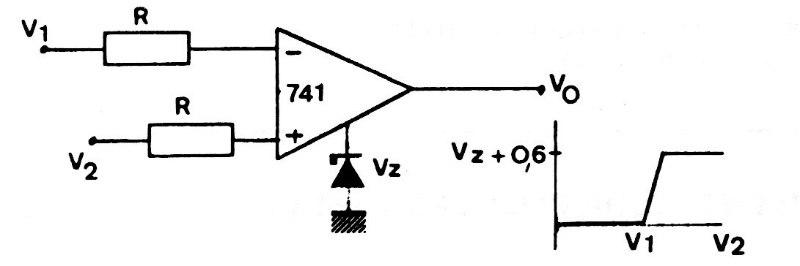

This circuit compares the input voltages by providing an output according to the curve next to the diagram. The circuit is valid for other operators and the supply voltages must be in accordance with the operational and higher than the compared voltages.
