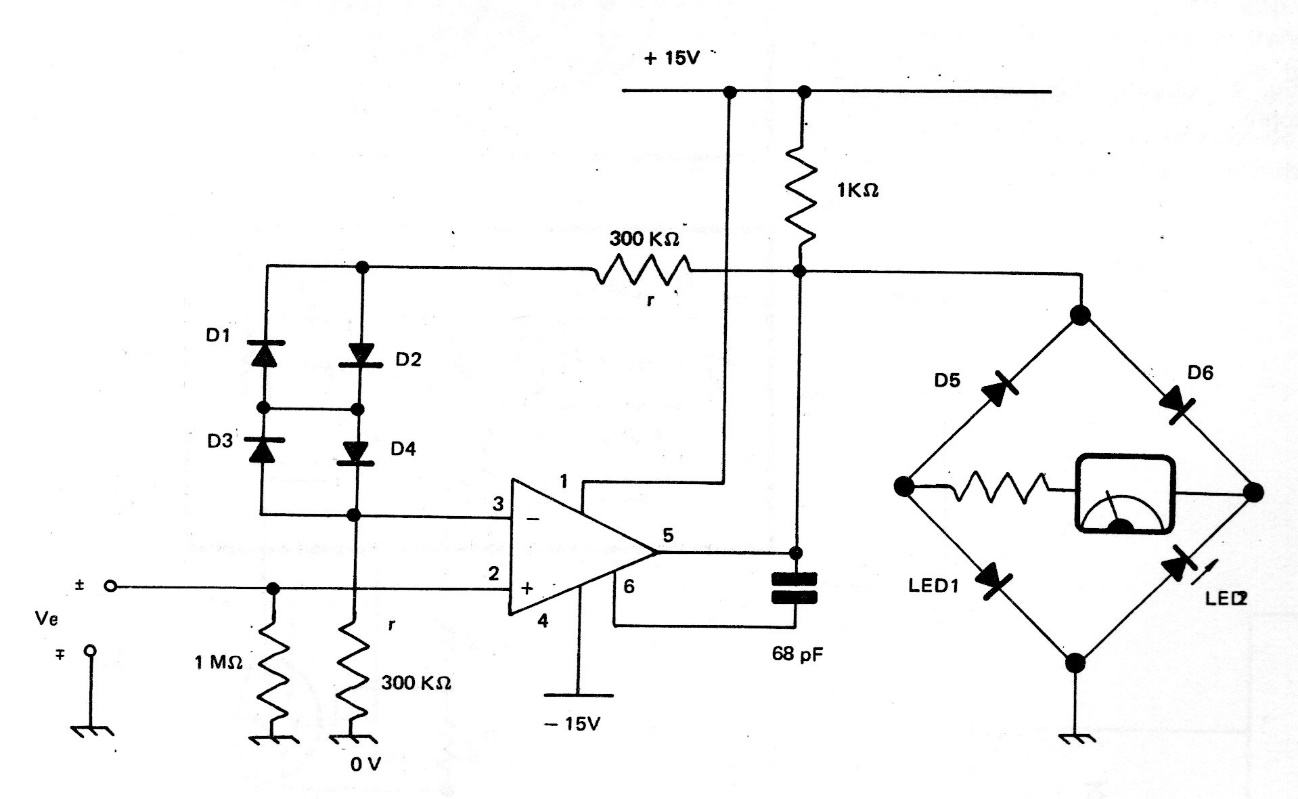

Common operational amplifiers can be used on this circuit. The resistor with no value in series with the instrument has values between 100 ohms and 1 k depending on the resistance of the instrument and its full scale. The circuit requires a symmetrical power supply and has 1 M ohms of input resistance.
