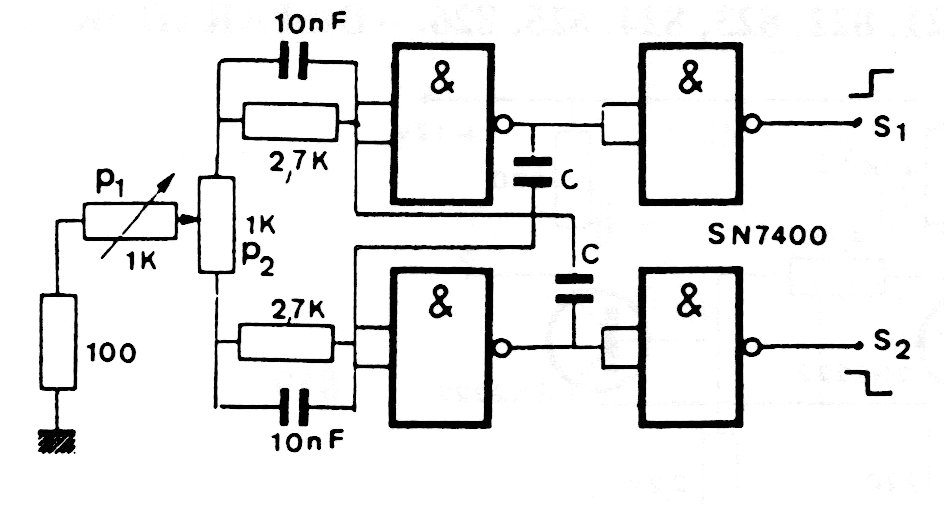

This astable NAND TTL provides complementary signals. The circuit must be powered with 5 V and uses the 7400's four NAND gates. The frequency depends on the capacitors and the signal is adjusted in the potentiometer P1.
