Inverting AC Amplifier 3403 (CB19734E)

Details
Written by: Newton C. Braga

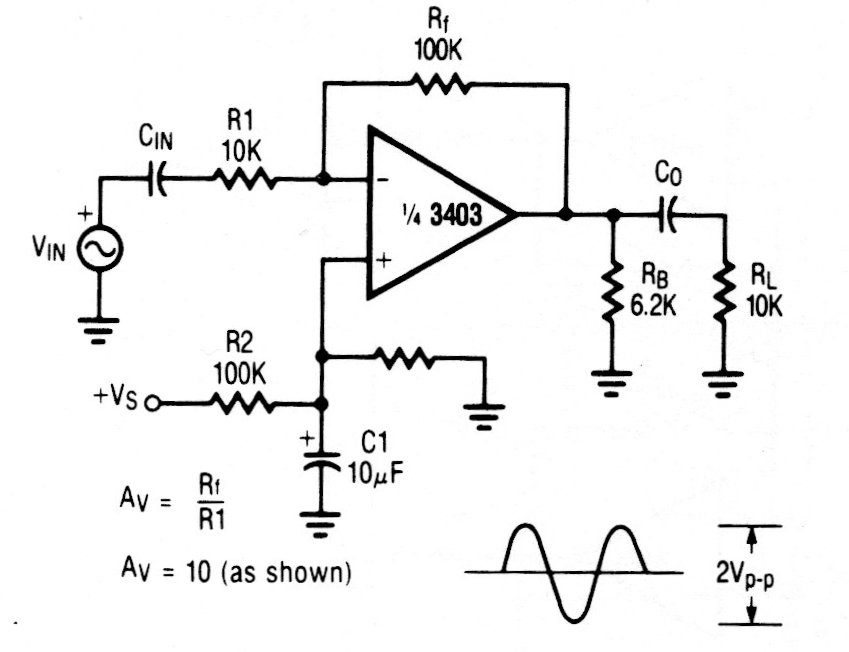

The 3403 operational amplifier is not common today, but the configuration can be implemented with more modern operational. The source must be symmetrical, and the circuit is from an 80's manual.
