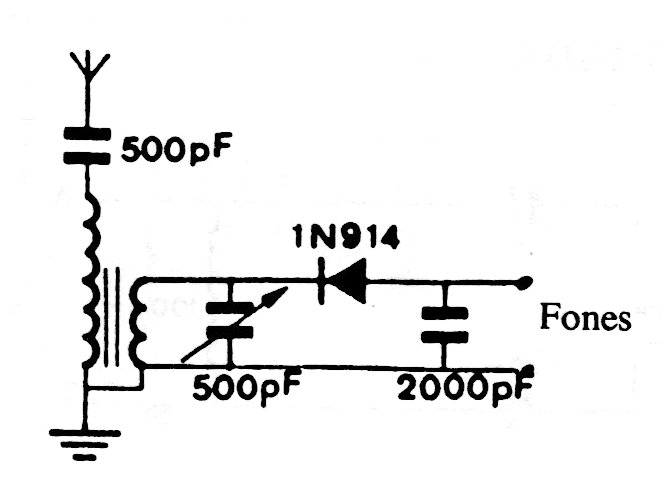

This crystal radio version using a detector diode was found in documentation from the 90s. The primary of the coil has 80 turns and the secondary 30, wrapped in a ferrite rod. The handset must be high impedance or crystal and the antenna must be long.
