Amplitude Modulator (CB19261E)

Details
Written by: Newton C. Braga

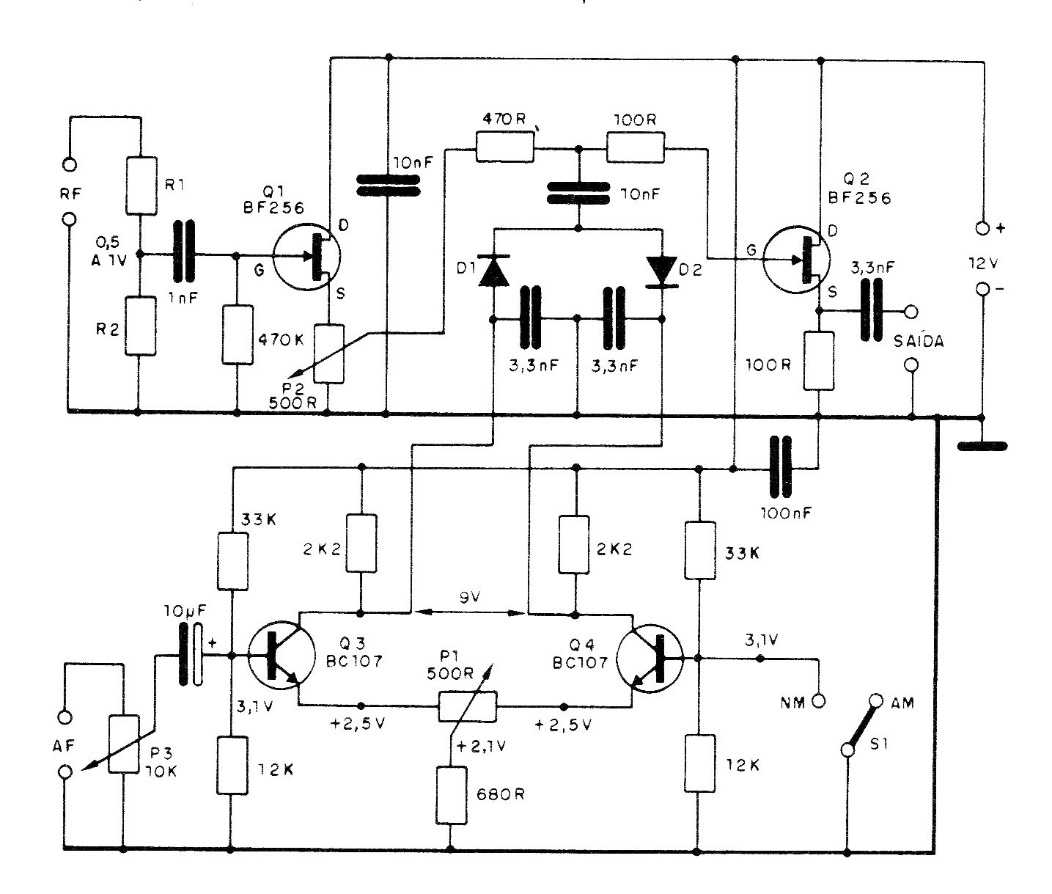

This circuit was found in documentation on FETs from the 1980s. The circuit receives an audio signal and an RF signal providing an amplitude-modulated RF signal at its output. The various adjustments make it possible to obtain a signal with 100% modulation.
