TTL Digital Watch (CB19634E)

Details
Written by: Newton C. Braga

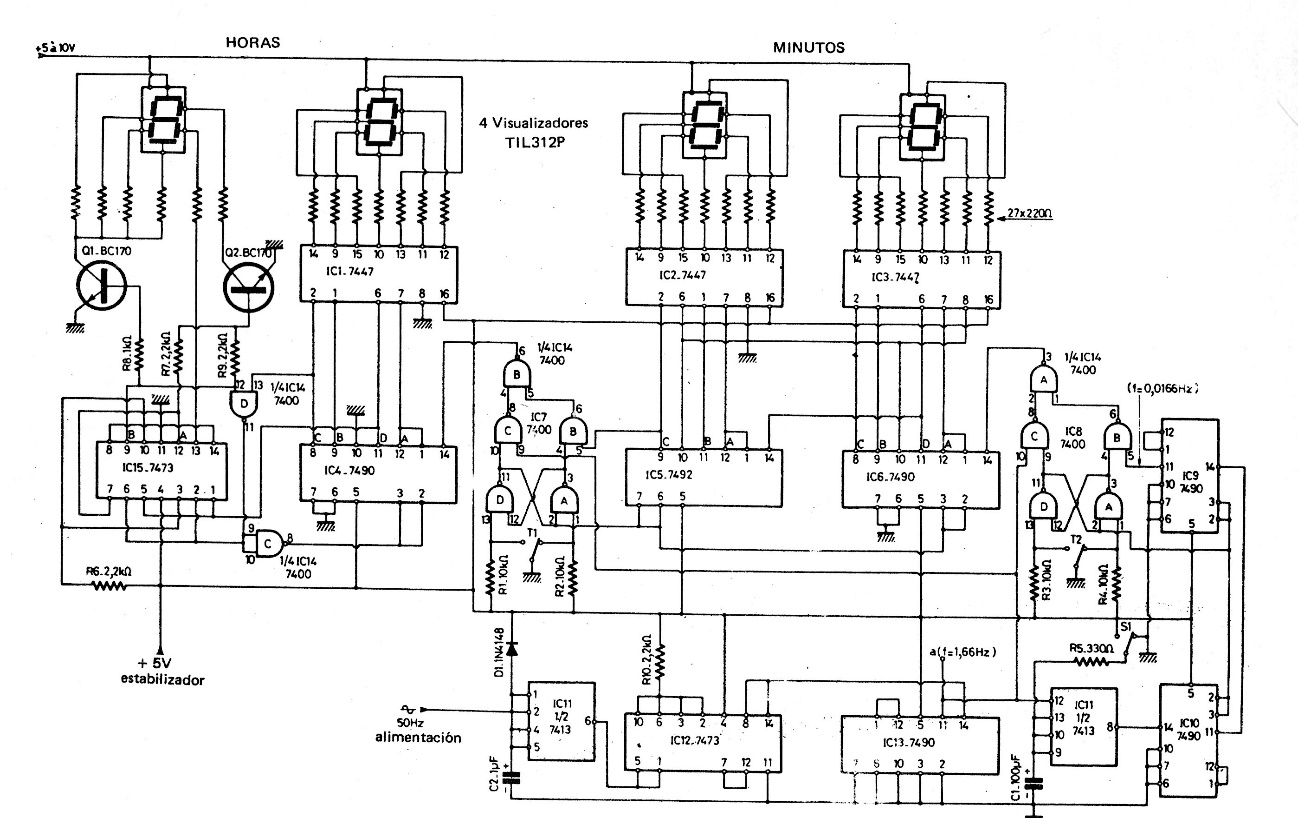

This basic TTL watch and minute clock circuit was found in European documentation from the 1970s. The power supply is not included and is given in CB19635E. The circuit uses common anode displays.
