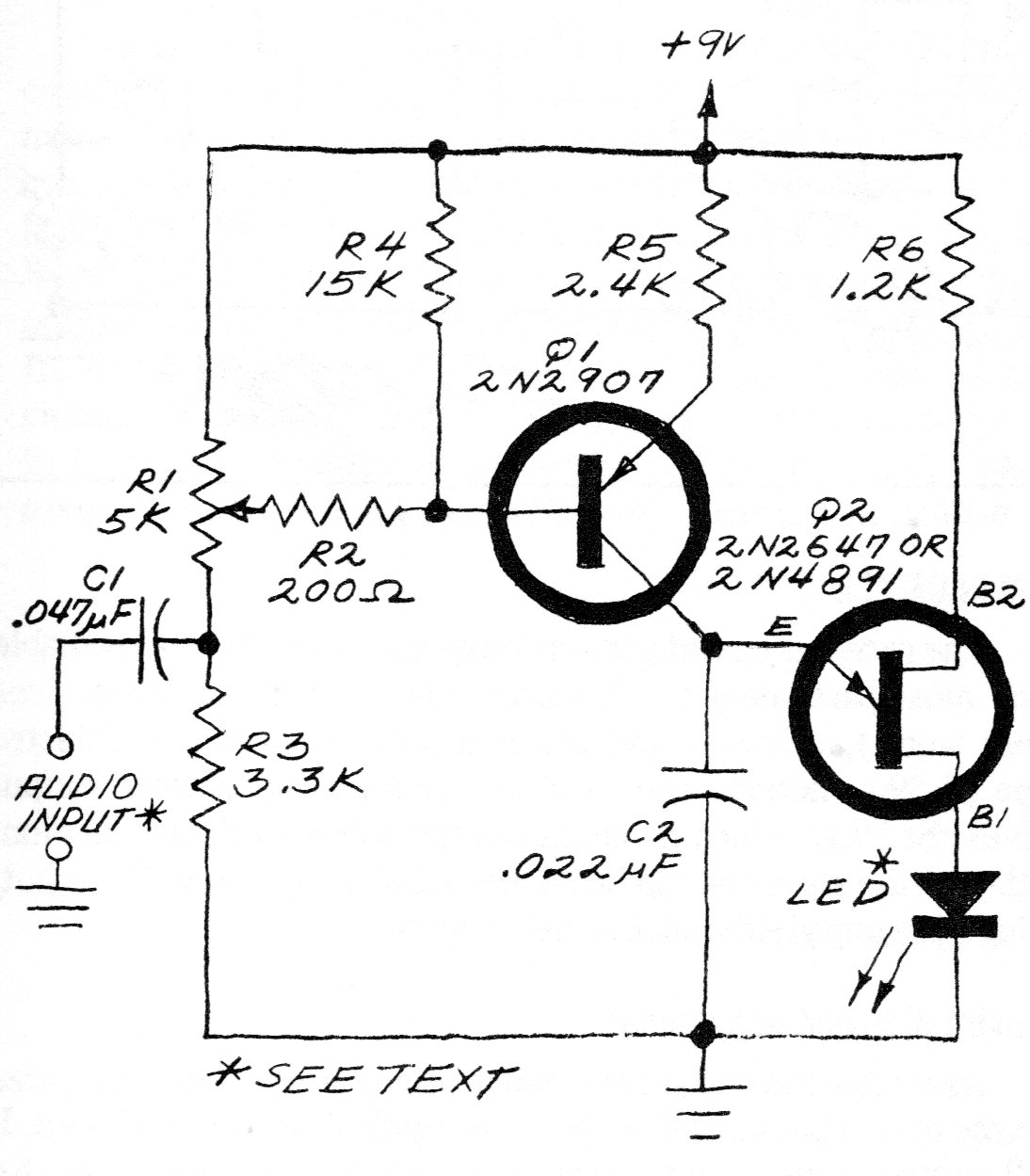

This pulse frequency modulation circuit or PFM from audio signals can also be used as a sensor input shield for sounds when powered by 5 V. The circuit is from an American documentation from 1991 and the transistor can be the BC558. 2N2646 can be used for the unijunction and the basic pulse frequency is given by C2.
