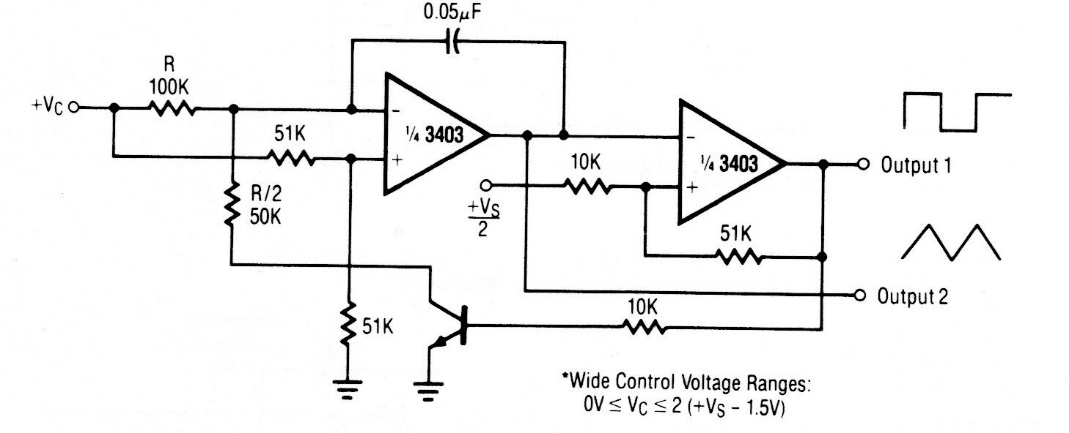

The operational 3403 is not currently common, but a similar configuration can be made with modern operational. The signals obtained are square and triangular and the frequency range depends on the capacitor.
| Clique na imagem para ampliar |
Voltage Controlled Oscillator (CB19732E)
- Details
- Written by: Newton C. Braga
