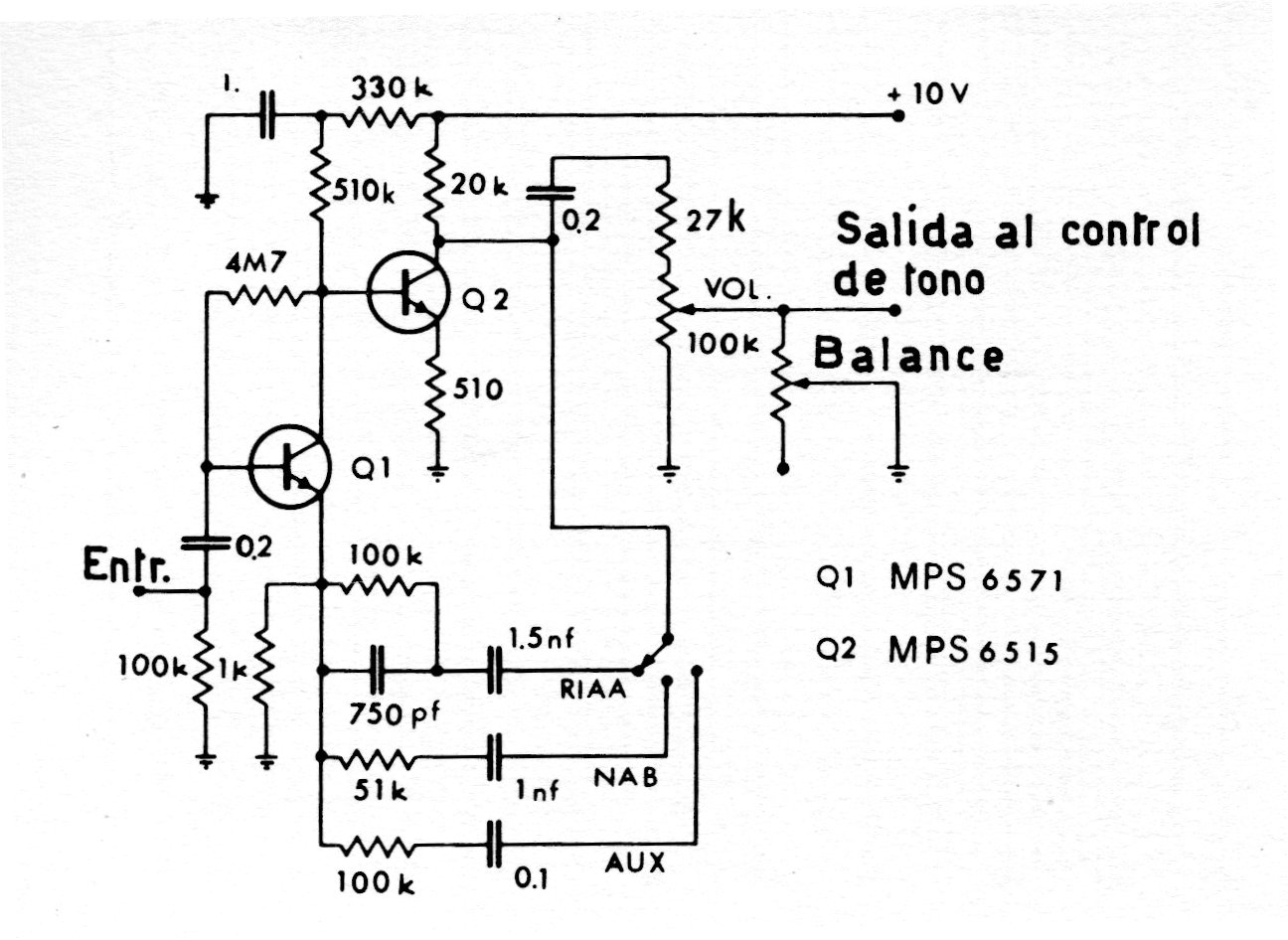

This circuit is from a 1972 Motorola publication. Some of the used transistors can still be found, but equivalents can be used. The circuit has several equalizations and is powered by the amplifier with which it will work.
| Clique na imagem para ampliar |
