Voltage Calibrator II (CB19746E)

Details
Written by: Newton C. Braga

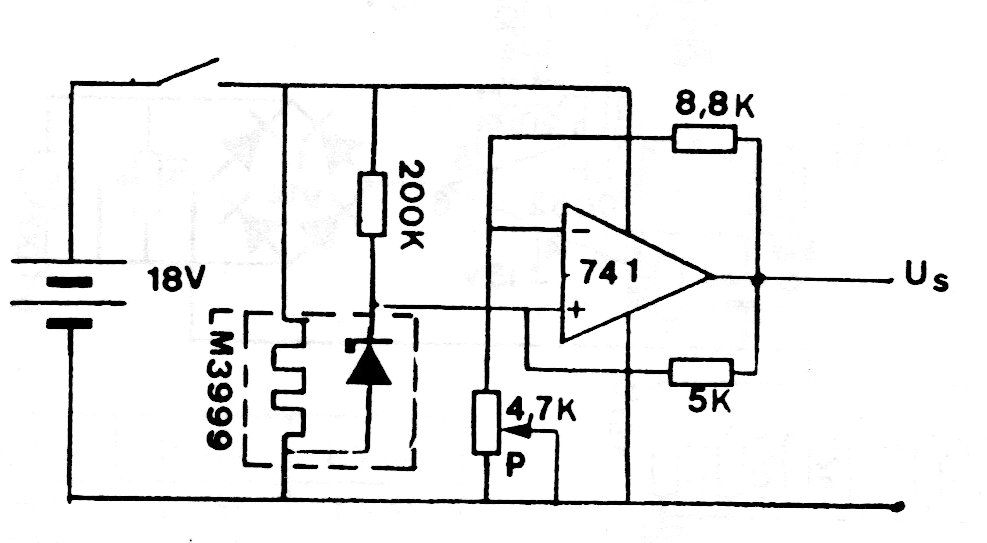

We found this circuit in an old documentation. It has a thermally compensated voltage reference. The circuit is powered by a single source.
