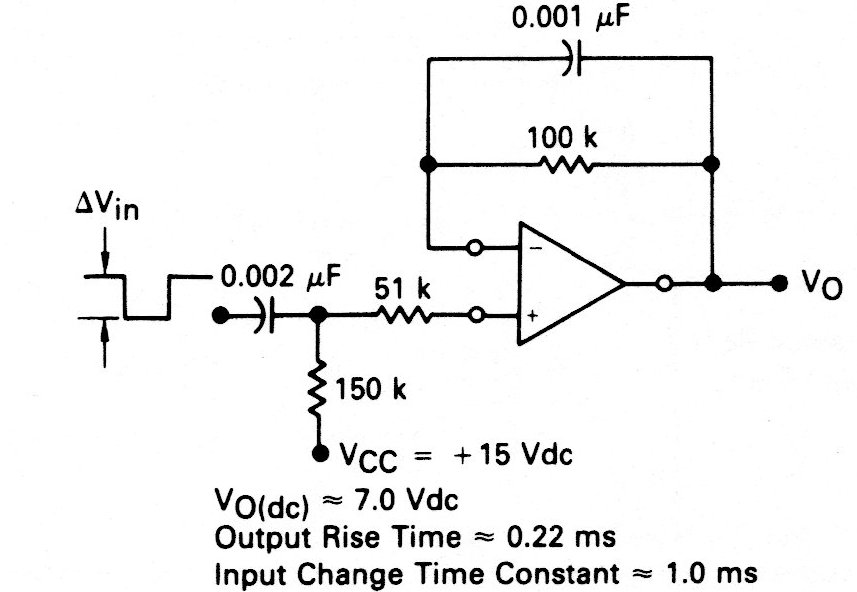

This circuit is from the LM101 manual. However, the configuration is valid for other operationals. The source must be symmetrical, and the characteristics of operation are given next to the diagram.
| Clique na imagem para ampliar |
Differentiator For Negative Front (CB19841E)
