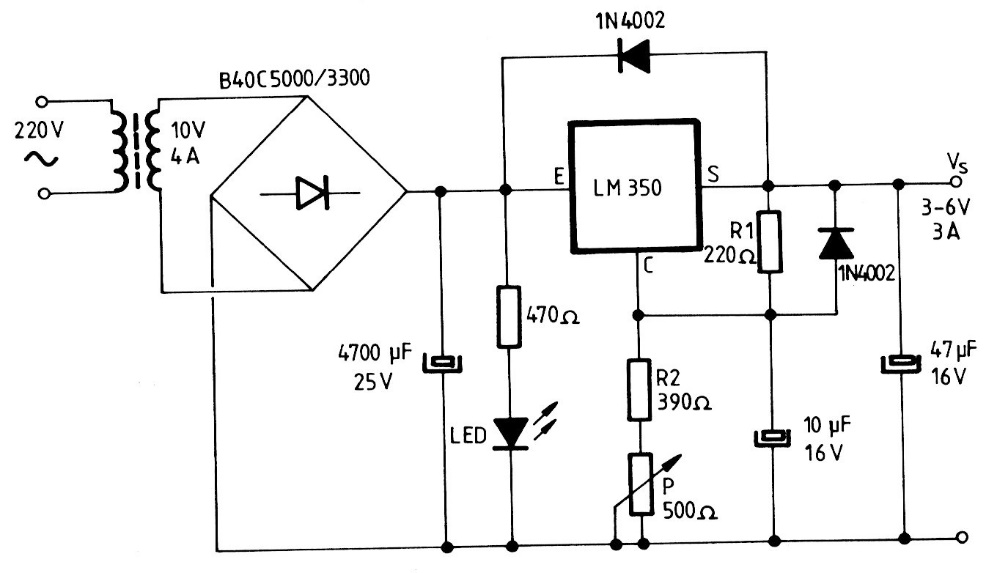

This 3 A adjustable source uses the LM350 integrated circuit, which must have a good heat radiator. The circuit is from 80s documentation and has been explored in other versions on this site.
| Clique na imagem para ampliar |
3 to 6 V x 3A power supply (CB19306E)
- Details
- Written by: Newton C. Braga
