SUS Frequency Divider (CB19903E)

Details
Written by: Newton C. Braga

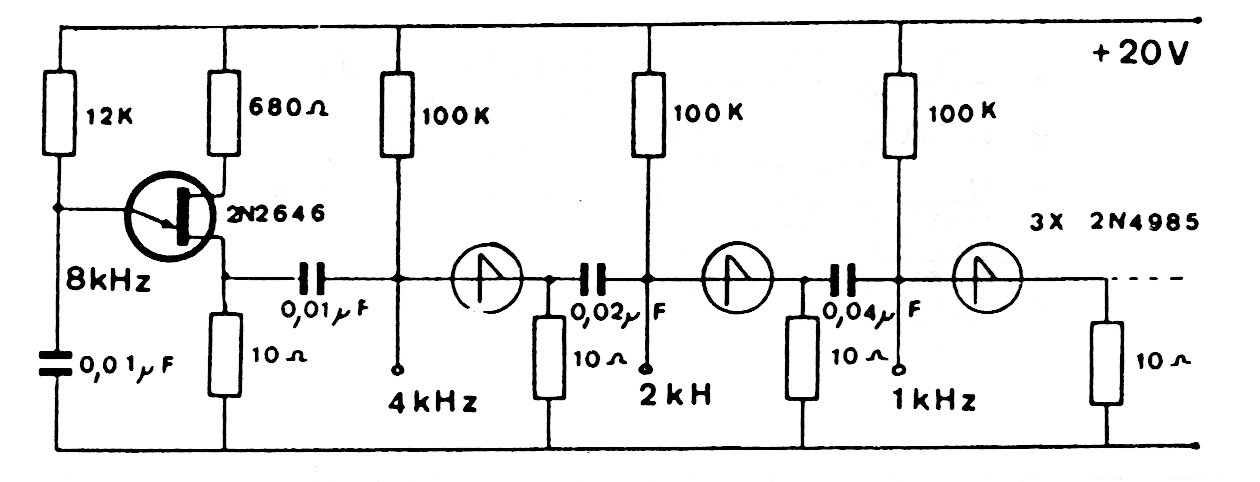

In the figure we have a circuit that uses unusual components, being indicated for low frequency applications. The circuit signal is generated by a unijunction transistor that oscillates at 8 kHz.




| Clique na imagem para ampliar |
