Surge Protector (CB19977E)

Details
Written by: Newton C. Braga

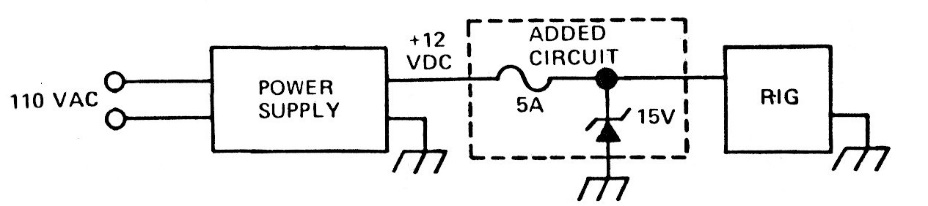

This circuit can be used with 5 to 15 V sources and the zener diode must be chosen according to the trip voltage of the protector. The circuit blows the fuse when the voltage exceeds the zener value.




| Clique na imagem para ampliar |
