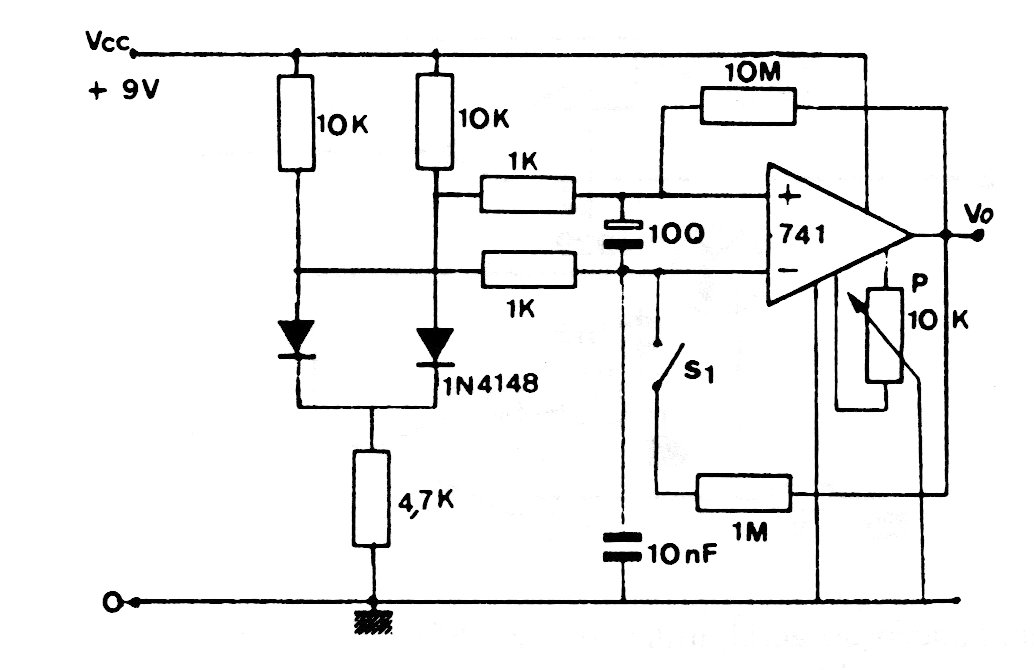

We found this circuit in an old European documentation, but the components used are still all current. The sensors are silicon diode operating in a differential mode. The temperature change in any one of them causes the circuit to switch, being able to control an external load through an appropriate stage.
| Clique na imagem para ampliar |
