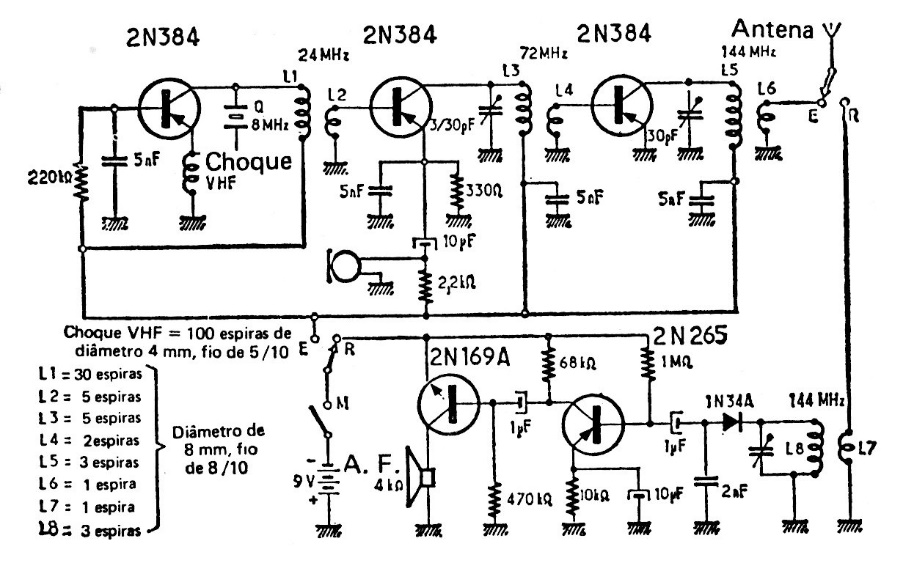

This circuit was obtained in a European technical publication from the 1970s. The circuit uses transistors from the time and in the open field has a range of several hundred meters. The data of the coils are provided next to the diagram, remembering that the assembly is very critical due to the frequency at which it operates.
