Exposimeter (CB19858E)

Details: Written by: Newton C. Braga

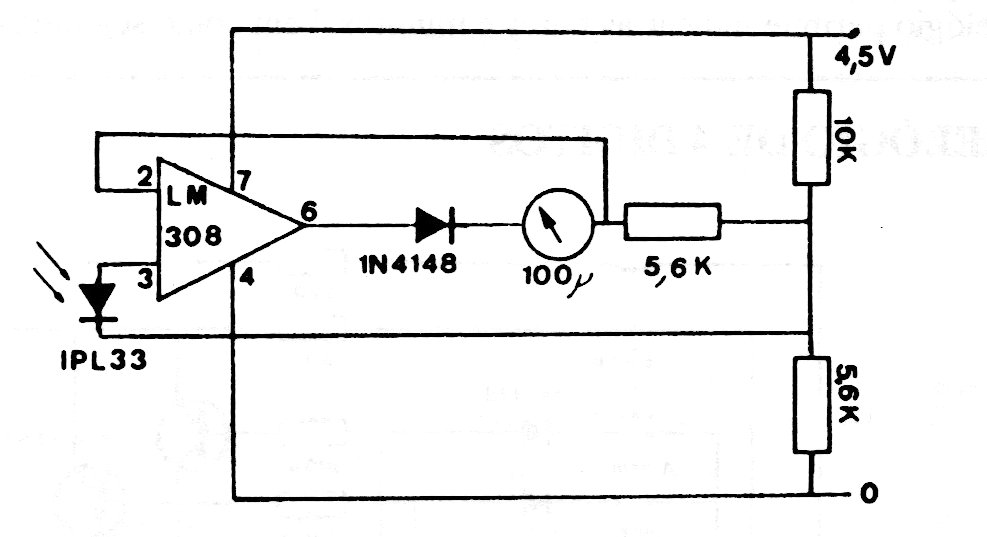

The sensor of this circuit is a photodiode. Equivalent operations can be used, and the instrument can be replaced by the lower current range of a standard multimeter.
