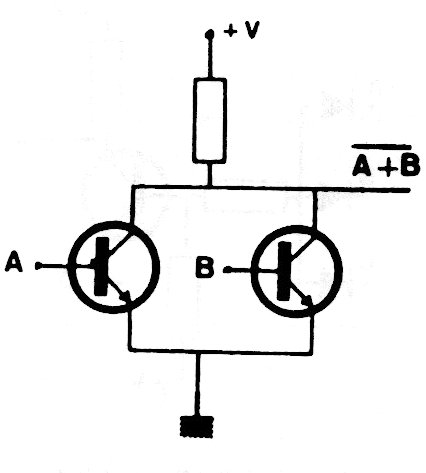

Two Transistor NOR Gate (CB19887E)
- Details
- Written by: Newton C. Braga
This NOR or NO-OR function circuit can be implemented with two or more general purpose transistors. For 5 V logic the collector resistor can typically range from 1k to 2k2.
