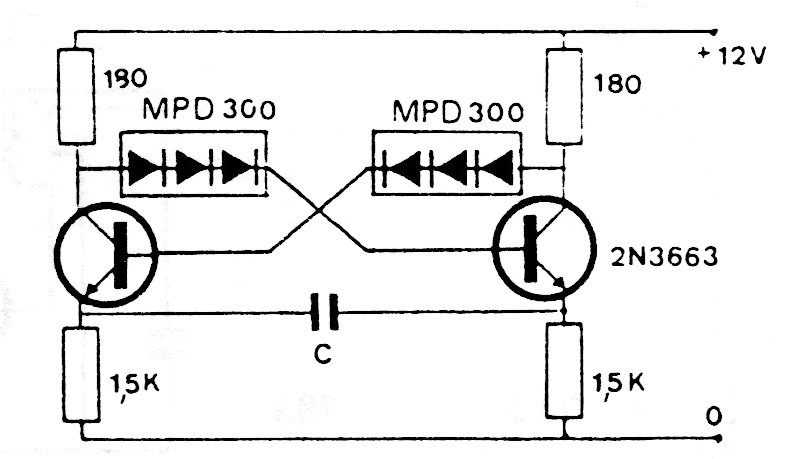

This unusual configuration, but which has already been explored in other articles, uses diodes in the feedback circuit. The characteristics of these components determine the frequency. Transistors can be of general use and the supply voltage can typically be between 9 and 15 V.´
| Clique na imagem para ampliar |
