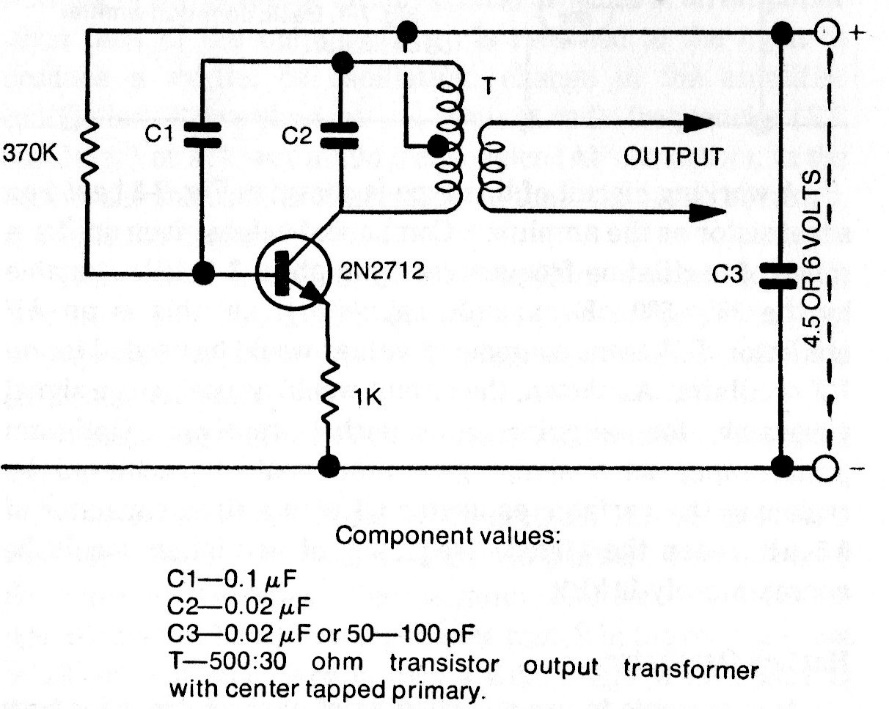

The frequency of this oscillator depends on T, which for the audio band can be a common output transformer for transistors. For the RF band it can be wrapped around a ferrite rod. The transistor can be the BC548 and the maximum frequency is in the order of a few tens of megahertz.
