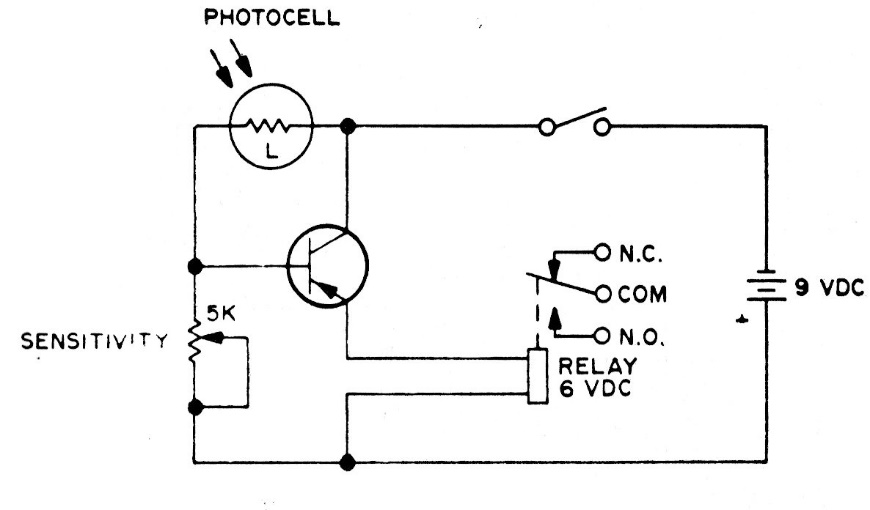

This circuit activates a relay when the sensor receives light. The sensor can be any common LDR, and the sensitivity adjustment can be from 4k7 to 10k. The supply must be according to the voltage of the relay, between 5 and 12 V.
