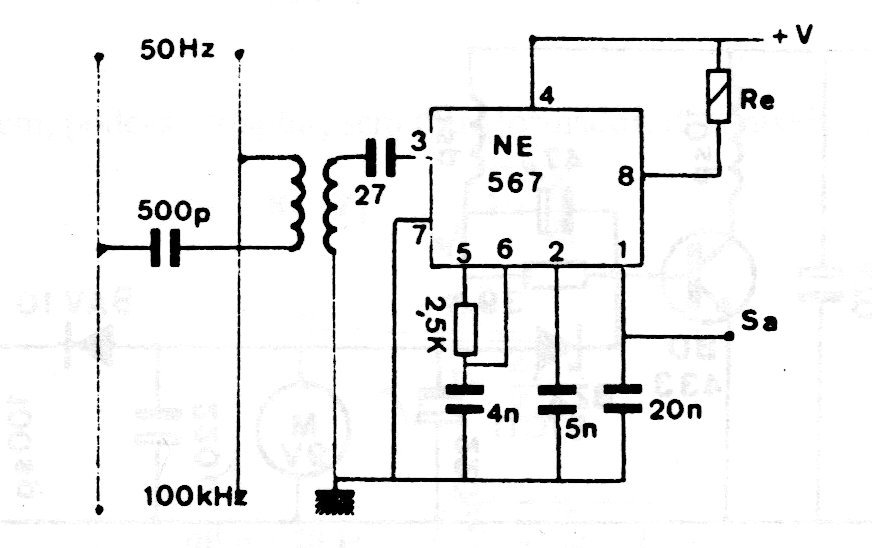

This circuit is based on the well-known PLL 567 and can operate at 100 kHz. The transformer can be wound on a ferrite rod with 100 turns in each winding of wire 28 to 32. Power is from 5 to 10 V.
| Clique na imagem para ampliar |
Power Grid Remote Control Transmitter (CB19926E)
- Details
- Written by: Newton C. Braga
