LDO 5 A TTL (CB19834E)

Details
Written by: Newton C. Braga

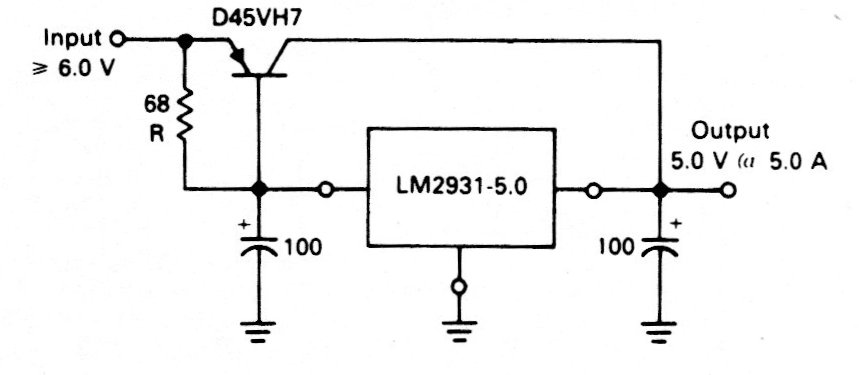

This high current regulator with low voltage drop was found in the datasheet of the used integrated circuit itself. The transistor accepts an equivalent and must be provided with a heat sink.
