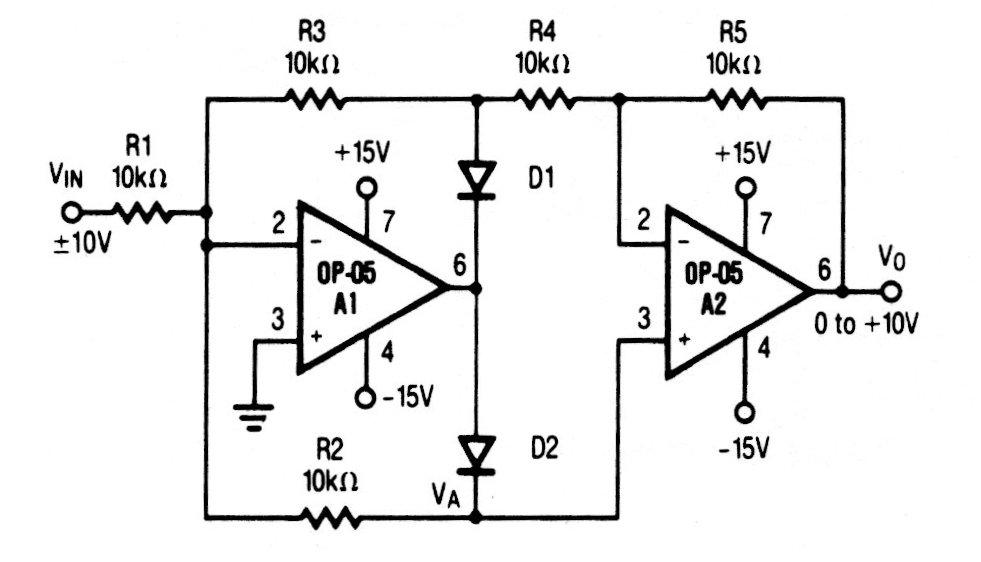

The presented circuit uses an operational one of the time. The circuit is from an 80's manual and can be implemented with more modern equivalents. The diodes are general purpose, and the source must be symmetrical.
| Clique na imagem para ampliar |
Absolute Value Precision Circuit (CB19714E)
- Details
- Written by: Newton C. Braga
