Tachometer 555 (CB20662E)

Details
Written by: Newton C. Braga

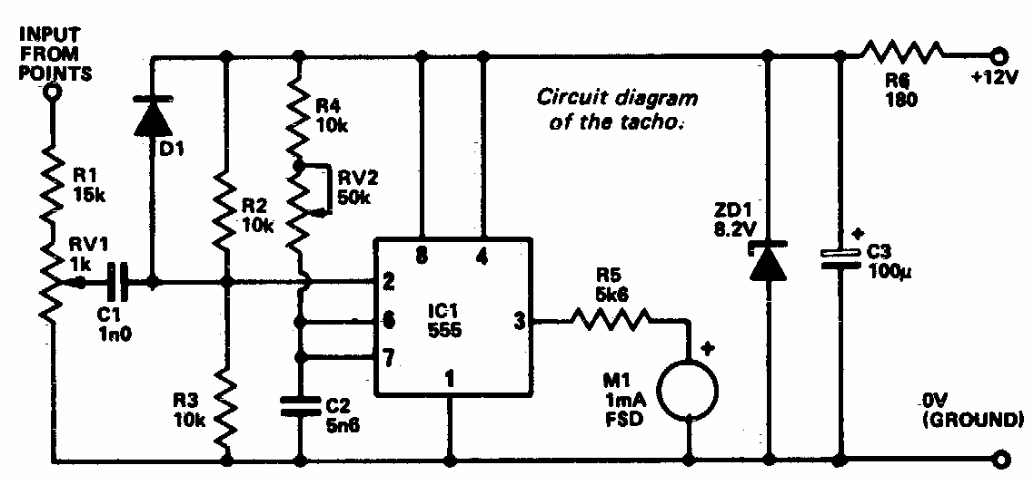

This circuit is one of many that can be found in this section using the 555. This circuit was found in old American documentation being applied to cars that use contact breaker.
