Luminous Telephone Call Repeater (CB20306E)

Details
Written by: Newton C. Braga

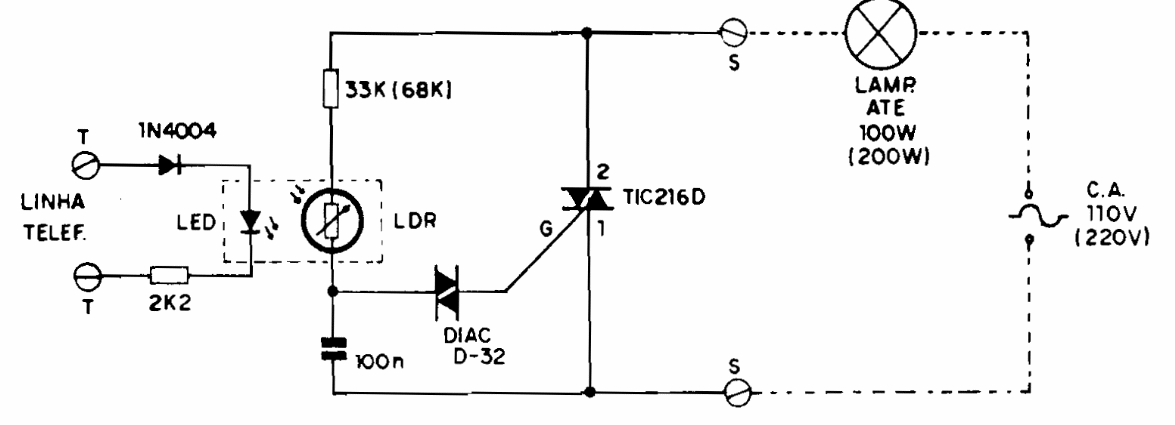

When the phone rings, a high-powered incandescent light comes on. This circuit can be interesting to obtain the remote call warning or to assist the hearing impaired.




| Clique na imagem para ampliar |
