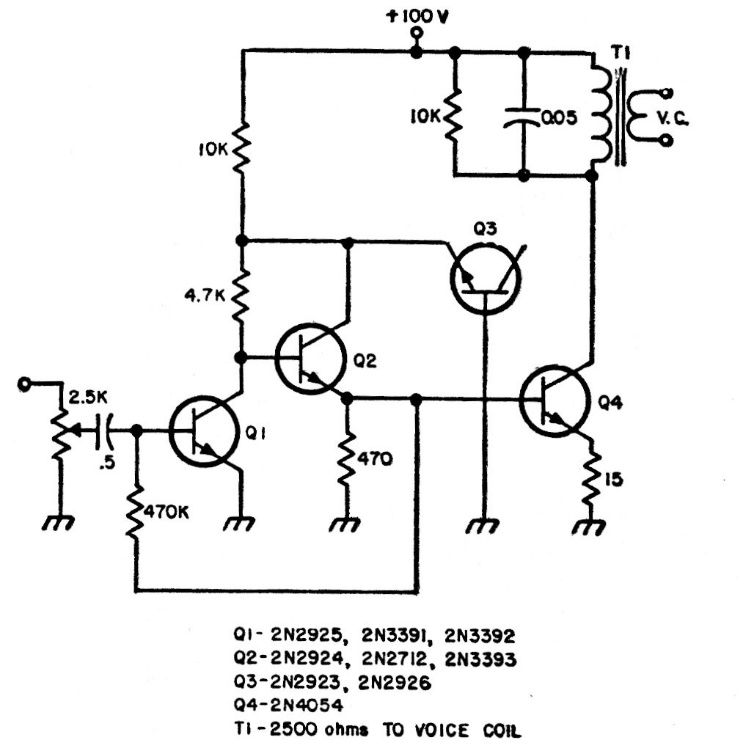

We found this circuit in an American documentation from 1975. The list of transistors that can be used is attached to the diagram. Modern types can be experienced.
| Clique na imagem para ampliar |
High Voltage Audio Amplifier (CB20044E)
- Details
- Written by: Newton C. Braga
