LED Light Sensor (CB20316E)

Details
Written by: Newton C. Braga

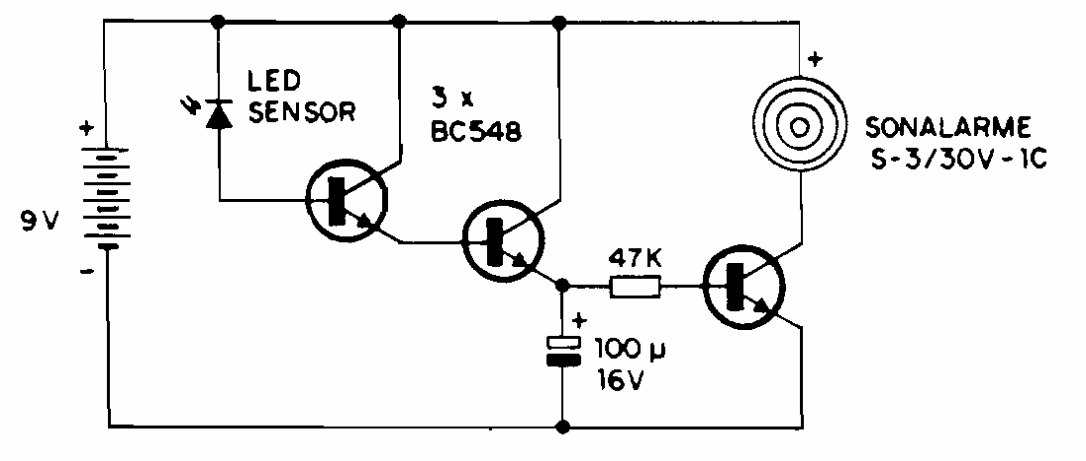

This circuit triggers a Sonalarme when the LED used as a sensor receives light. The circuit was found in an old documentation, but the components used are all current.
