Automotive Triangle Alternator (CB20070E)

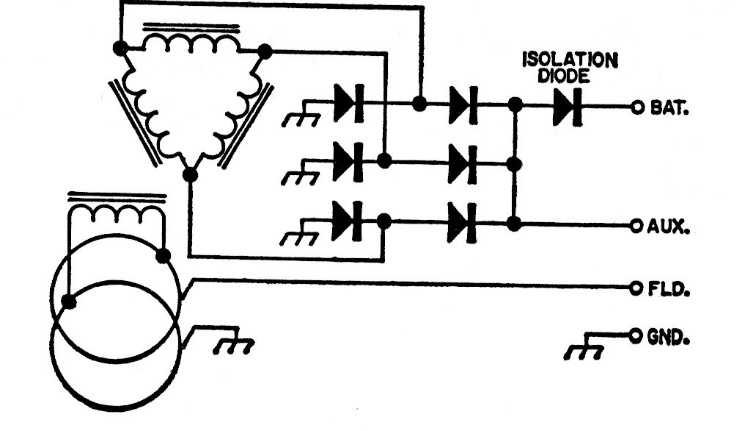

In the figure below we have the connections of an automotive alternator in a triangle. The diodes depend on the current.
