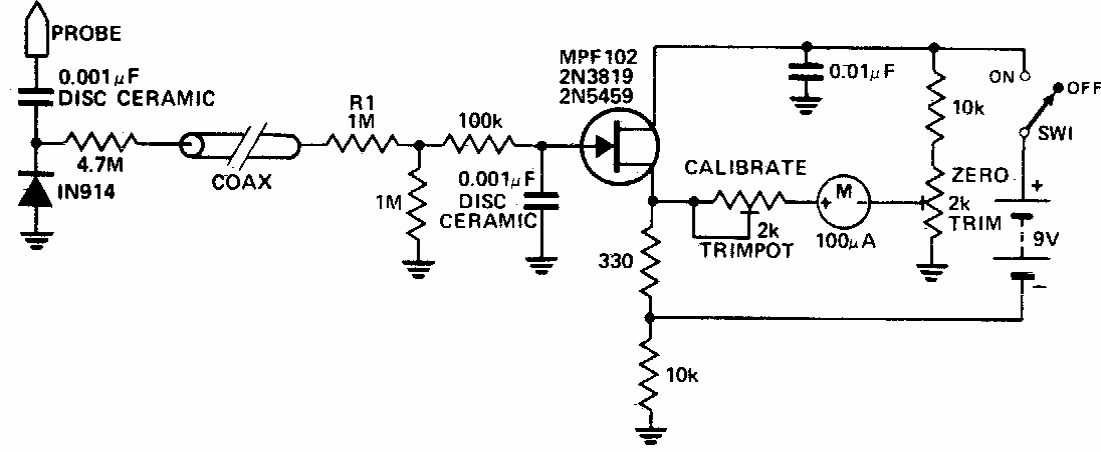

This circuit for RF measurements at 200 MHz was found in no documentation two years 80. At a sensitivity of 1V peak and the components used are still common in these days.
| Clique na imagem para ampliar |
RF Meter (CB20739E)
