Frequency-based code key (CB20927E)

Details
Written by: Newton C. Braga

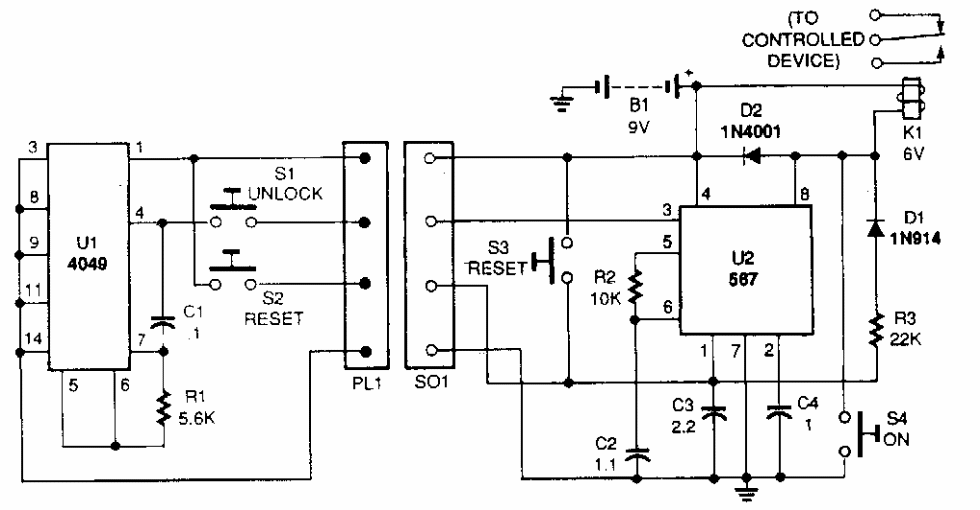

This code key uses a PLL and an oscillator that generates two frequencies that must be recognized for the relay to be activated. The circuit is from an 80's Popular Electronics.






| Clique na imagem para ampliar |
