Positive differentiator (CB20754E)

Details
Written by: Newton C. Braga

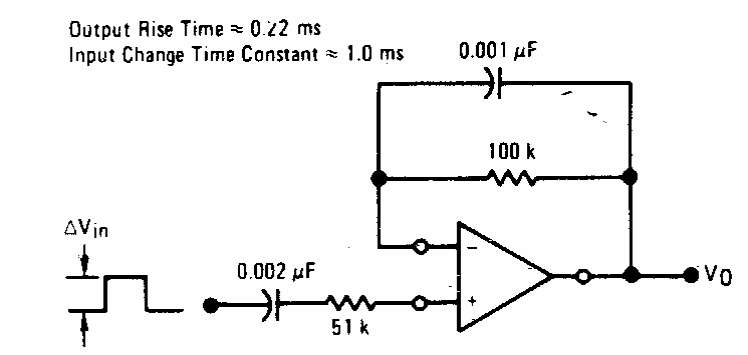

This differentiator for the positive front of the input signal can be elaborated based on any operational amplifier. The characteristics will depend on the components.
