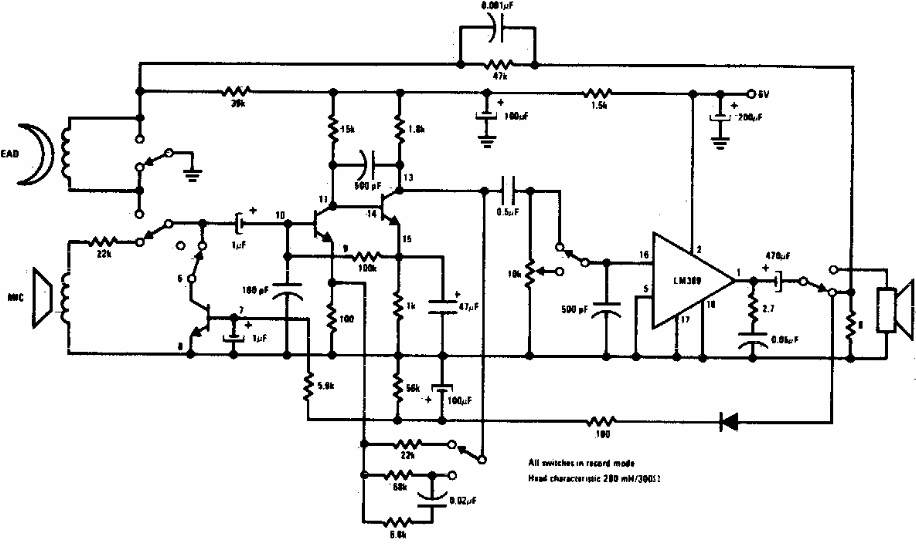

This two-year-80s circuit consists of a solution for a small portable recorder powered by cells, as it was used at the time. The circuit can serve as a reference for the recovery of old equipment.
