This circuit was found in documentation from the 90s. The operational amplifier is NE5514, which is uncommon today. The configuration can be adapted to use modern components.
| Clique na imagem para ampliar |

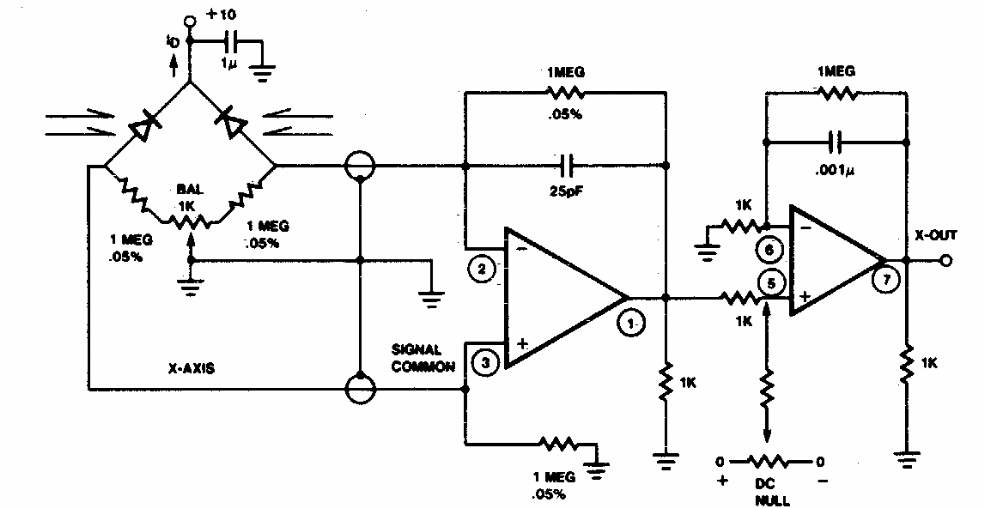

Four-quadrant photoconductive detector (CB20687E)
- Details
- Written by: Newton C. Braga
