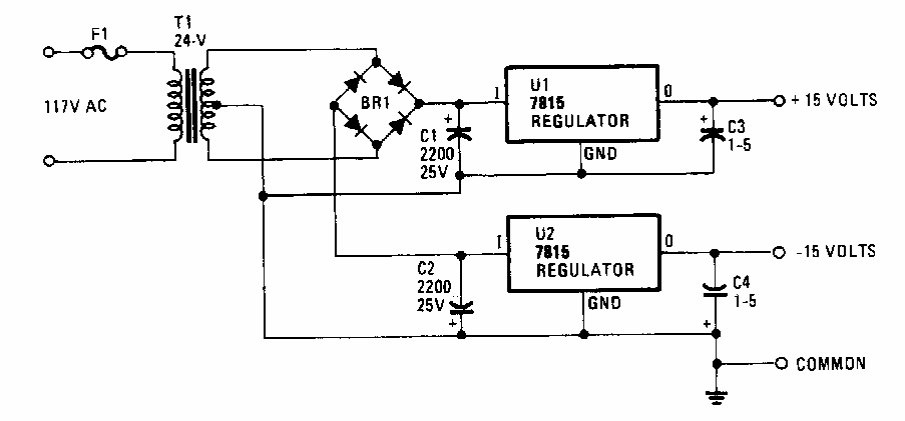

15V symmetric power supply (CB21188E)

This circuit was found in a Radio Electronics from the 90's. The maximum current is 1 A.

| Clique na imagem para ampliar |
