Signal time (CB21426E)

Details
Written by: Newton C. Braga

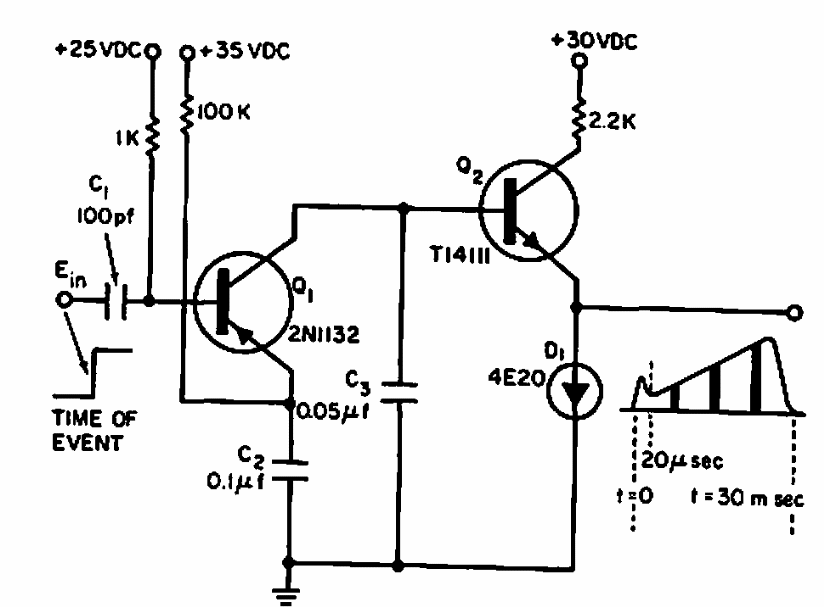

Found in a 1965 Electronic Design, this circuit produces a signal with the waveform shown in the figure from an input pulse. Components admit equivalents.




| Clique na imagem para ampliar |
