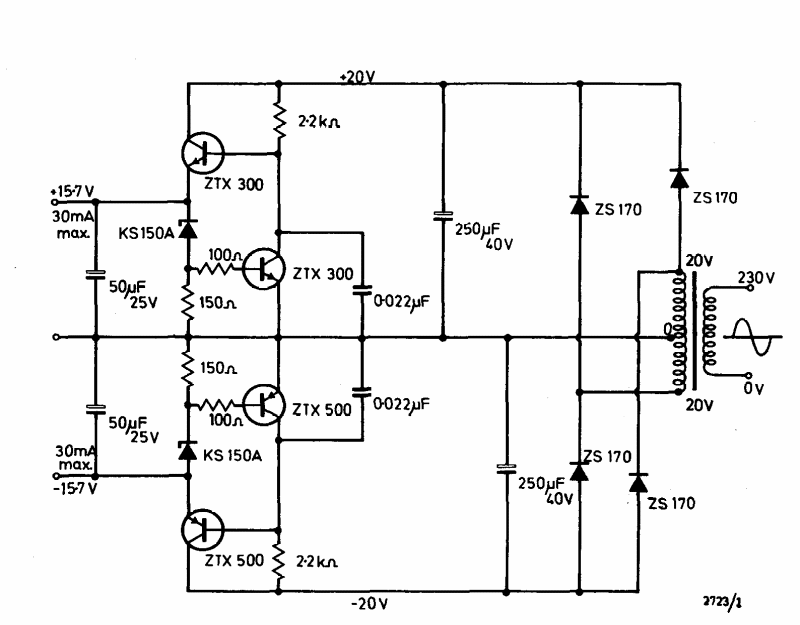

Operational Power Supply (CB21854E)

This symmetric 30 mA x 15 V power supply was found in the Ferranti transistor manual from 1974. Transistors are common types at the time.

| Clique na imagem para ampliar |
