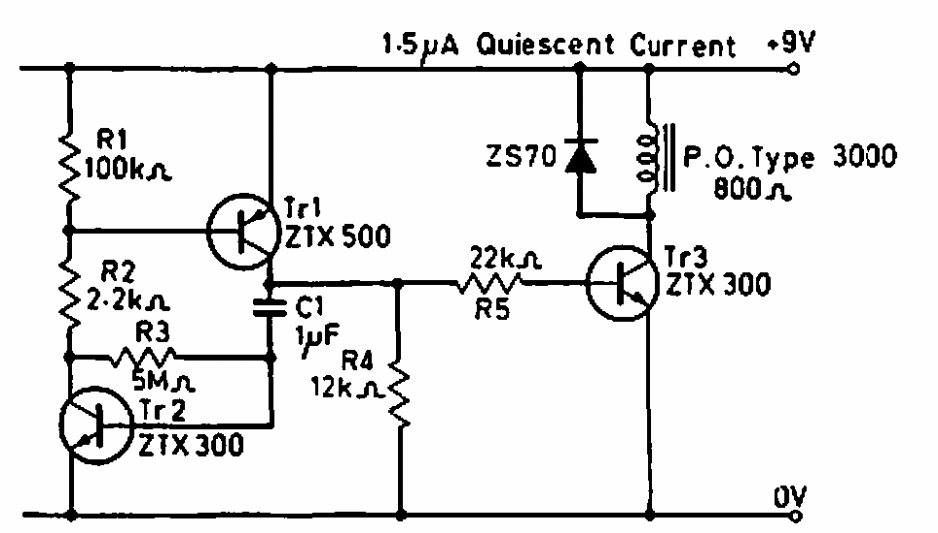

Found in a 1969 British publication, this circuit uses a regenerative switch with two transistors to produce pulses that depend on C1. The relay must be in accordance with the supply voltage.
| Clique na imagem para ampliar |
Auto repeat timer (CB21425E)
- Details
- Written by: Newton C. Braga
